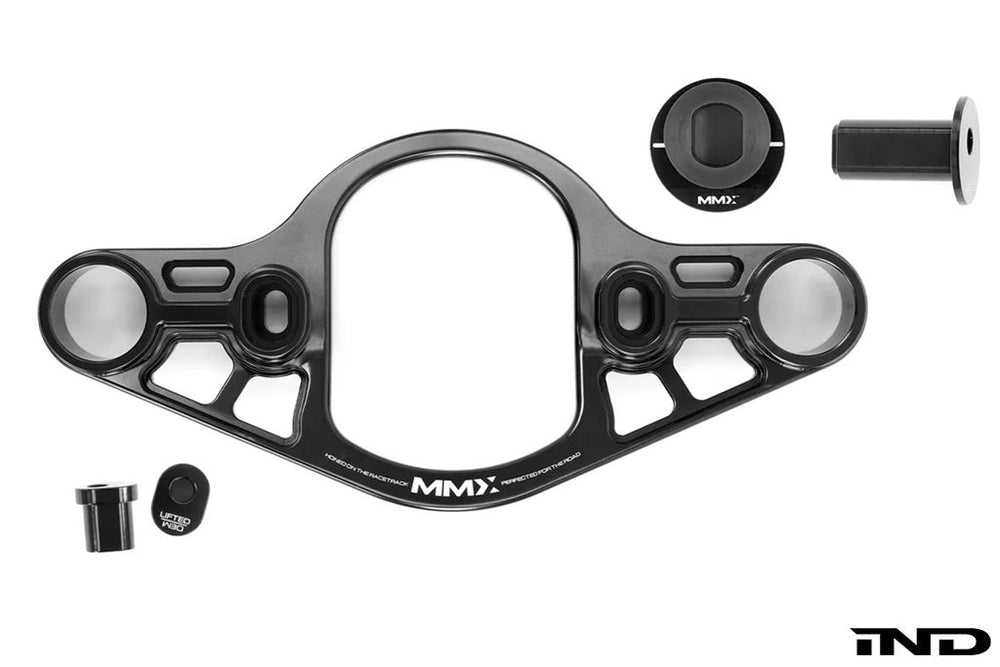

The MMX Performance G8X M2 / M3 / M4 3-Point Differential Lift Kit combines the two components needed to control rear differential movement on the BMW G87 M2, G80 / G81 M3, and G82 / G83 M4: the billet front differential cradle and the raised polyurethane rear differential bushing. The kit fits both RWD and xDrive models and can be installed at the factory OE differential height or reversed for a +10mm raised position.

The MMX Front Differential Lift Mount / Cradle (MMR55-1604) replaces the factory front differential mount and is precision machined from 6061-T6 billet aluminum. The MMX Rear Differential Raised Poly Bush (MMR55-1605) replaces the factory rear differential mount bushing with 80A durometer polyurethane, and its two-position center section sets either the factory height or the +10mm raised height. Both components install into the factory mounting locations with no modification required.

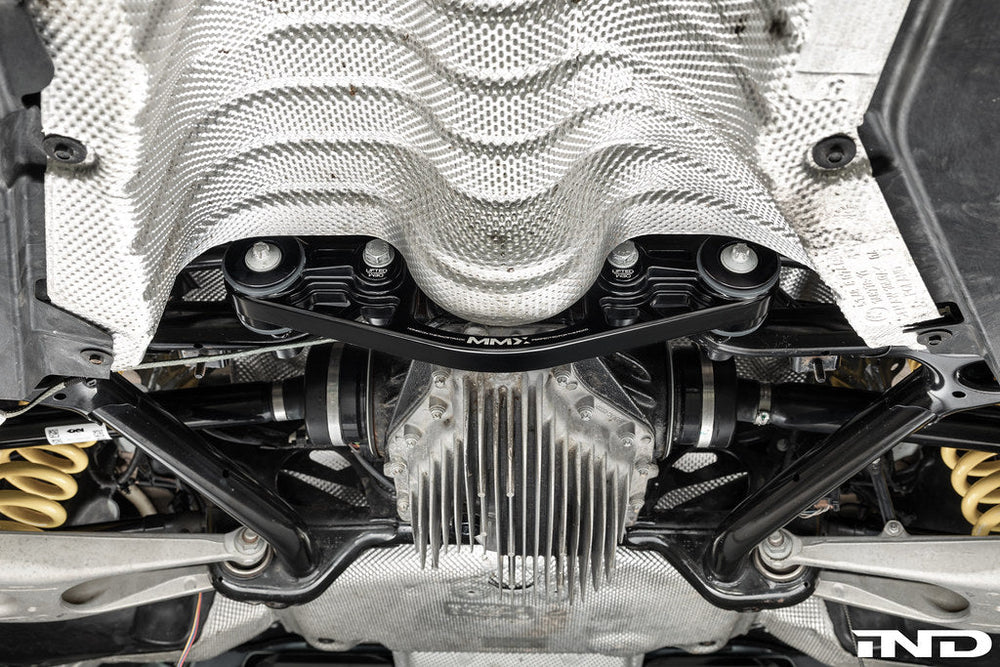

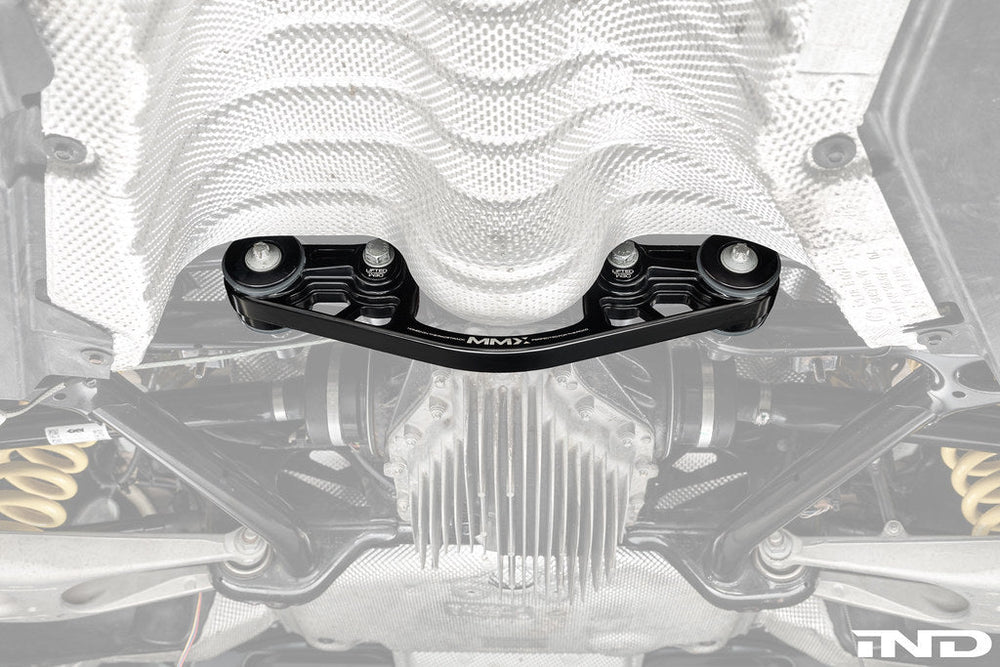

At OEM height, the kit creates a firmer connection between the differential and the chassis, reducing drivetrain movement under acceleration and changing loads without altering the rear driveline geometry. In the reversed "lifted" position, the cradle and rear bush raise the differential by 10mm. Lowering a G8X changes the operating angle of the rear driveshafts. Raising the differential by 10mm corrects that geometry, reducing heat and premature wear on the CV joints and axle shafts. The raised configuration is intended for lowered vehicles and works with both OEM and aftermarket axle shafts.

The 3-Point kit is the foundation of the MMX G8X differential mounting system. The MMX Performance G8X M2 / M3 / M4 4-Point Differential Lift Kit builds on it by including the Rear Dual Differential Mount and a second raised poly bushing in the additional rear mounting location that doesn't exist in the factory setup. The MMX Performance G8X M2 / M3 / M4 Complete Differential Kit adds a high-capacity differential sump and output shaft heat shields to the 4-Point system.

MMX G8X Differential Kit Comparison

• 3-Point: Front Differential Lift Mount / Cradle and one Rear Differential Raised Poly Bush.
• 4-Point: Adds the Dual Differential Mount and a second Rear Differential Raised Poly Bush.
• Complete: Adds the High-Capacity Baffled Differential Sump and the Output Shaft Heat Shield Set to the 4-Point system.

Product Details

• Front differential cradle and rear differential bush supplied together as a matched kit
• Front cradle precision machined from 6061-T6 billet aluminum
• 80A durometer grey polyurethane rear differential bushing
• Installs at OEM differential height or raised +10mm
• OEM height reduces drivetrain movement under load
• +10mm raised position corrects driveshaft geometry on lowered vehicles
• Reduces heat and premature wear on OEM or aftermarket axle shafts
• Direct fit into the factory mounting locations with no modification required
• Minimal increase in NVH, suitable for road and track use
• Fits RWD and xDrive models
• SKU: MMR55-0001

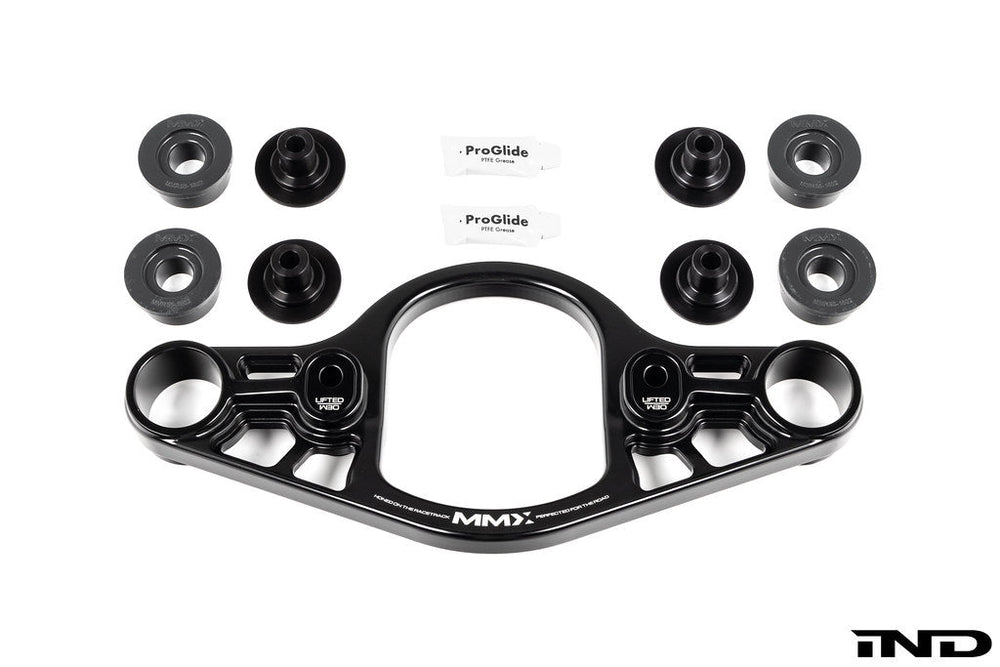

What's in the Box

• 1 x MMX Front Differential Lift Mount / Cradle (MMR55-1604), replaces the factory front differential mount

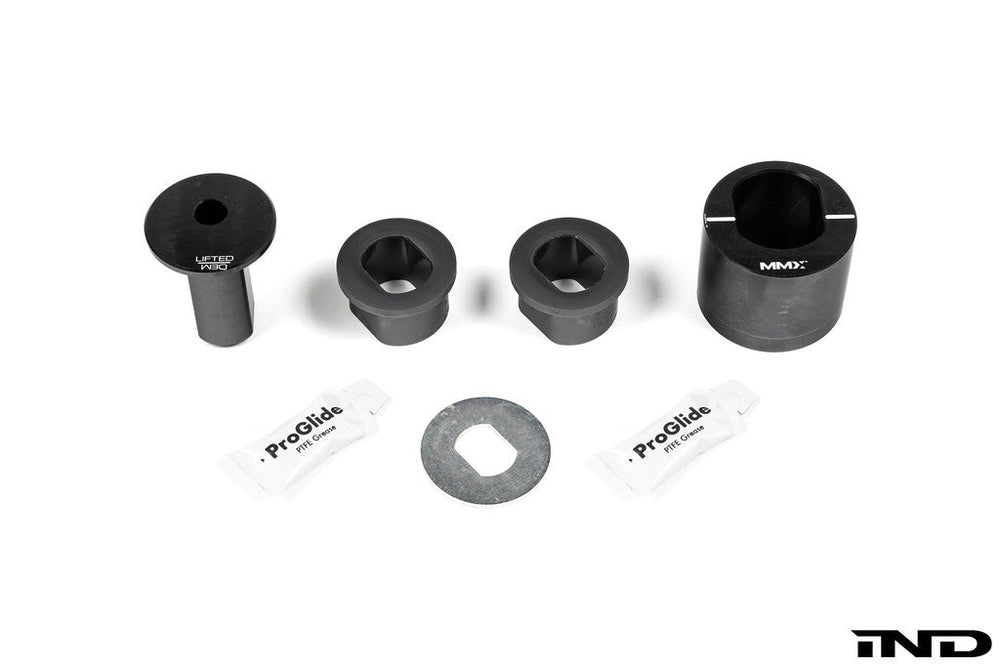

• 1 x MMX Rear Differential Raised Poly Bush (MMR55-1605), replaces the factory rear differential mounting bush

Notes

• Differential height is selected during installation. The front cradle and rear bush must be set to the same position, OEM height or +10mm raised.
